Heavy Duty Passive UHF Tag

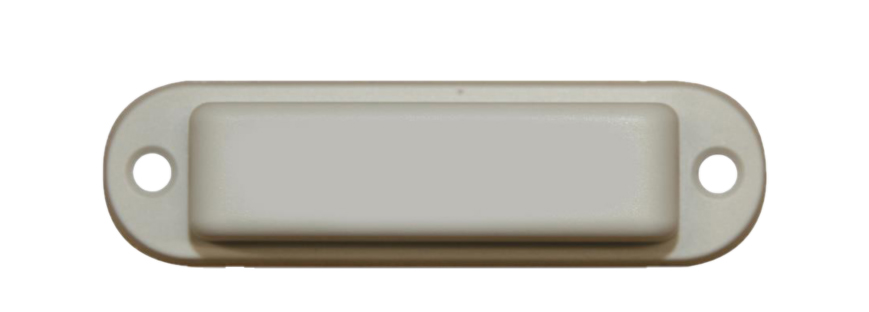

TagMaster Heavy Duty Passive UHF Tag

Product Sheet

TagMaster Long-Range RFID UHF Tag

The Heavy Duty Passive UHF Tag by TagMaster improves data collection speed and accuracy for logistics applications while making tracking more cost-effective. Heavy Duty Passive UHF Tag technology enables anti-collision functionality, fast data-rate communication, and password data protection for precise, reliable reading and the ability to update each Tag’s 512 bit read/write memory.

Long Range Identification

This heavy-duty, long-range UHF Tag will be identified up to 25 feet using a TagMaster XT-5 RFID reader. The UHF Tags are battery- and maintenance-free, allowing quick, reliable, hands-free access.

Integration

The TagMaster Reader and ID solution is fully integrated with Ward’s Automated Fuel Management system for secure automated access to fuel dispensers and EV chargers.

Mounting

TagMaster’s Heavy Duty Passive UHF Tag is lightweight, waterproof, and can be mounted on metal, plastic or wood. This Tag is suited for outdoor use in extreme conditions and on vehicles with UV-coated windshields.

Fleet Applications

  • Fuel dispensers
  • EV chargers
  • Secure parking areas
  • Maintenance bays
  • Vehicle/car wash
  • Battery-free
  • Consistent detection range up to 25 feet*
  • Waterproof
  • Extreme durability – IP69K
  • EPC compliant – UHF Class 1 Gen 2
  • Reliable performance on metal and non-metal surfaces
  • Large user memory
  • Multiple mounting options
Detection Range Up to 25 ft* with XT-5 and XT-1 Reader
Operating Frequency 860 to 960 MHz
Operating Temperature -40°F to +185°F (-40°C to +80°C)
Dimensions 3.8 x 1 x .6 in (97 x 27 x 15 mm)
Color Grey or blue
Housing PC/ABC high impact material
Protection IP69K
Optional Mounting Accessories Card Tape
Memory 128 bit EPC + 96 bit TID + 512 bit User Memory
