DC Fast Split Systems

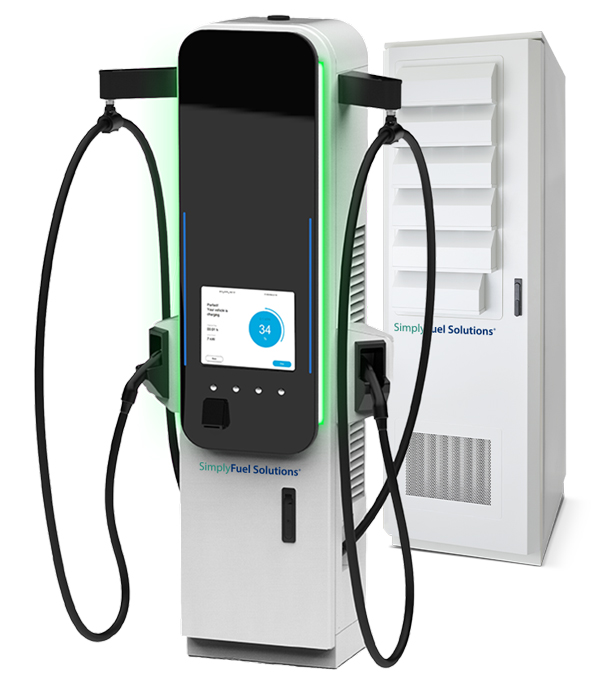

SAT 400 + 360 DLBS EV Charger

120kW / 180kW

The innovative Sat 400 Satellite charger combines elements of user comfort with superior space and energy efficiency. Its perfect integration with power units, including the Axon Side DLBS, creates intelligent charging systems that minimize power loss and optimize charging times. With a range of available Satellite configurations, including a dual drive-through version, the device adapts to the specific needs of urban locations. A proprietary Cable Management System (CMS) ensures ergonomic and safe use, while dynamic power sharing allows up to six vehicles to be charged simultaneously, increasing charging point throughput. Optional applied solutions enhance the convenience and safety of use, making the Sat 400 the ideal solution for modern charging stations that aim to deliver the highest quality of service.

Charge up to eight cars from one Power Cabinet
CC, RFID, Plug N Charge (ISO 15118) capable
Single or dual CCS1
Cable Retraction options

Power Cabinet

180kW / 240kW / 360kW

Part of the modular, flexible, efficient, and highly serviceable Gen 4 split system product line
Simultaneous charging utilizing Dynamic Power Allocation technology

Product Sheet

Public Dynamic Power Allocation for Fast Charging

Designed for retail customers, sequential charging is available at the dispenser level. With two vehicles plugged into one dispenser, the second vehicle begins charging after the first vehicle is complete. This offers the ability of up to eight vehicles being charged unattended on a single 360 kW Power Cabinet / four Dispenser system.

Charge Eight Vehicles Unattended

With the four-channel system, fleets can now charge up to eight vehicles unattended at a time with sequential charging. With uptimes being crucial in a fleet environment, this ensures maximum charging for optimal vehicle usage. Up to four vehicles will charge simultaneously, while up to four will sit in queue and charge sequentially, allowing up to eight vehicles to charge unattended.

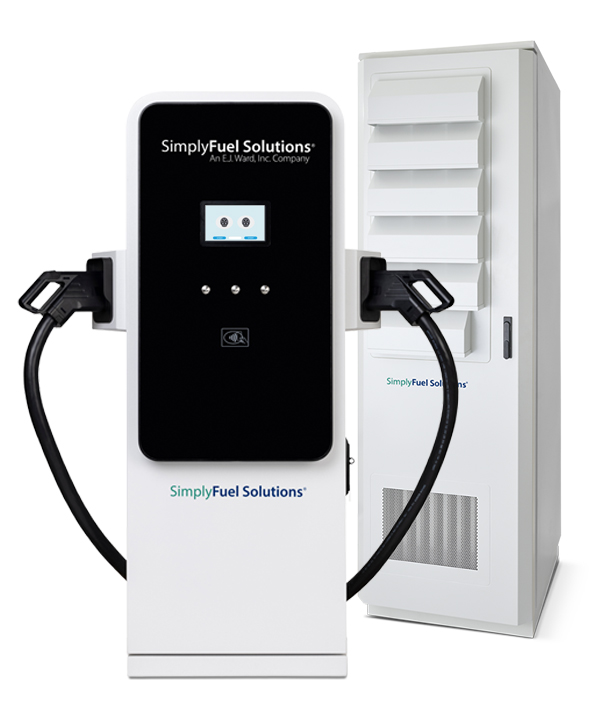

Single Tower, Four Dispenser System

In the single tower / four dispenser system, the dispensers are split into two groups of two. Each group can output a total of 180 kW. When the charging is complete, the charge sequences to the next vehicle plugged in and charges on its own. The infrastructure is simplified because only one 600 A 480 VAC breaker is needed.

360 kW Power Cabinet

Gen4 360kW Power Cabinet is part of the modular, flexible, efficient, and highly serviceable Gen4 split system product line. Paired with a dispenser, the power cabinet has the ability to output up to 360kW to a single vehicle. This is the industry’s first Dynamic Power Allocation, which means it has the ability to share power across multiple outputs simultaneously and improved capability with the Gen4 Power Cabinet. With class-leading size and power density, our Gen4 Power Cabinet can turn any space into a high-power charging station.
